Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19" 1U Rackmount

Name: Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19quot 1U Rackmount
Brand: GEZHI or OEM
Price: 1 USD

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19" 1U Rackmount Manufactures

Brand Name : GEZHI or OEM

Model Number : AD-SM-C-050-LC/UPC-3B

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $800

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : DWDM Transmission Systems

Type : Optimized Residual Dispersion

fiber type : 100% Slope compensation of G.652 fiber in C-band

ProdWarranty Timeuct name : Dispersion Compensation Module

Warranty Time : 3 years

Use : Long-haul telecommunication

Contact Now

Product description

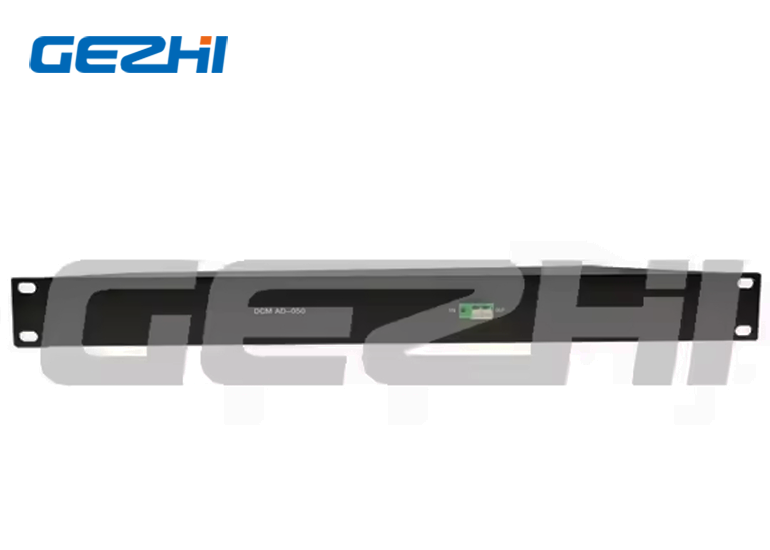

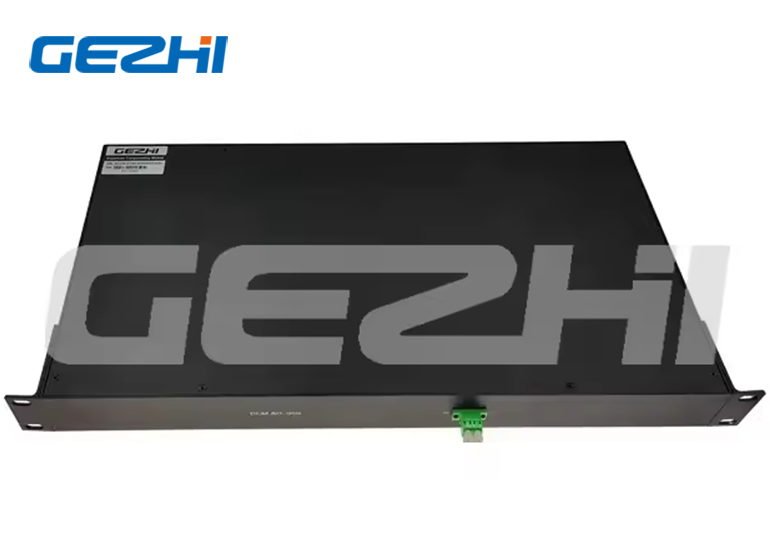

Fiber Repeater DCM OADM chassis Passive dispersion compensation module Fiber Optic DCM in 19" 1U Rackmount

Dispersion Compensation Module (DCM) is designed to fix the form of optical signals that are deformed by chromatic dispersion. The main constituent of DCM is DCF (Dispersion Compensation Fiber) with a negative chromatic dispersion value at C-band wavelength. The module offers a high level of compensation while maintaining a low flat insertion loss as
well as a low latency. When combined with EDFA and OEO, DCM provides a simple, reliable, and cost-effective long-haul transport solution, making signals go further without regeneration.

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19" 1U Rackmount

Feature

Optimized residual dispersion

Low insertion loss Low

Polarization Mode Dispersion

100% Slop Compensation of G.652 fiber in C-band (typical) Broadband dispertion compensation in DWDM System Meet or Exceed Telcordia GR-2854-CORE & GR-21221-CORE Different package styles, connector types, and pigtail lengths are available

Specification

Parameters	AD-020	AD-040	AD-060	AD-080	AD-100	AD-120
Dispersion@1545nm (ps/nm)	-340±10	-670±20	-1000±30	-1340±40	-1680±50	-2010±60
Relative Dispersion Slope 1545nm (nm-1)	0.0036 +/- 20%
Inerstion Loss (dB)	≤4.5	≤6.3	≤8.3	≤10.4	≤12.0	≤12.0
Polarization Mode Dispersion(ps)	≤0.6	≤0.7	≤0.8	≤0.9	≤1.0	≤1.1
Polarization Dependent Loss (dB)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1

Parameters	AD-010	AD-030	AD-050	AD-070	AD-090	AD-110
Dispersion@1545nm (ps/nm)	-170±5	-500±15	-835±25	-1170±35	-1500±45	-1840±55
Relative Dispersion Slope 1545nm (nm-1)	0.0036 +/- 20%
Inerstion Loss (dB)	≤3.5	≤5.4	≤7.3	≤9.2	≤11.1	≤12.0
Polarization Mode Dispersion(ps)	≤0.6	≤0.7	≤0.8	≤0.9	≤1.0	≤1.1
Polarization Dependent Loss (dB)	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1

Nonlinear Properties

Parameters	Minimum	Maximum
SBS Threshold(dBm)	6	-
Nonlinear Coeff.(n2/Aeff) (W-1)	-	1.4*10-9
Effective Area(Aeff) (um2)	20	-
Environmental Characteristics
Parameters	Minimum	Maximum
Operating Temperature Range	-5℃	70℃
Storage Temperature Range	-40℃	85℃
Environmental/ Reliability	Meet Telcordia GR-2854 and GR-1221
Package
Package Style	19" 1U Rackmount	Connector	LC/UPC
Others	Neutral Packaging or Customized

Ordering Information
AD-SM-C-050-LC/UPC-1RU
AD : DCM Module；
SM :Singlemode fiber pigtailed；
C : C Band；
050 :Dispersion kilometers；
LC/UPC :Connector type；
1RU:19" 1U Rackmount；

Product Model:
AD-SM-C-010-LC/UPC-1RU
AD-SM-C-020-LC/UPC-1RU
AD-SM-C-030-LC/UPC-1RU
AD-SM-C-040-LC/UPC-1RU
AD-SM-C-050-LC/UPC-1RU
AD-SM-C-060-LC/UPC-1RU
AD-SM-C-070-LC/UPC-1RU
AD-SM-C-080-LC/UPC-1RU
AD-SM-C-090-LC/UPC-1RU
AD-SM-C-100-LC/UPC-1RU
AD-SM-C-110-LC/UPC-1RU
AD-SM-C-120-LC/UPC-1RU

Test Enviroment

Fiber Repeater DCM OADM Chassis Passive Dispersion Compensation Module Fiber Optic DCM In 19" 1U Rackmount

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
