Highly Reliable LGX GPON XGPON Video OTDR LGX SCAPC For Optical Telecommunication Networks

Product description

Highly Reliable LGX GPON XGPON Video OTDR LGX SCAPC for optical telecommunication networks

The GEZHI Photoncis’ WDM1r Multiplexer series is designed for Next Generation Passive Optical Networks (NG-PON solution), a new optical access system that conexists with GPON on the same ODN. Our high quality components ensure very high operation stability of WDM1r multiplexers in the whole spectral range and perfect thermal stability. GEZHI offers a flexible platform of WDM1r module to fit a specific PON deployment that is most cost-effective to your needs – Depending on your requirements each WDM1r module can be fully complemented with all PON services or with only the services requested. Premium optical components and high-quality connectivity ensure superior performance, the lowest loss, and robust network reliability. Our WDM1r multiplexers, including GPON, Video, and OTDR, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.

Application

1.WDM systems

2.PON SYSTEM

3.FTTH access networks

4.Optical telecommunication networks

Feature

1.Low Insertion Loss
2.High channel isolation
3.Thin Film Filter Technology
4.Ultra Stable and Highly Reliable

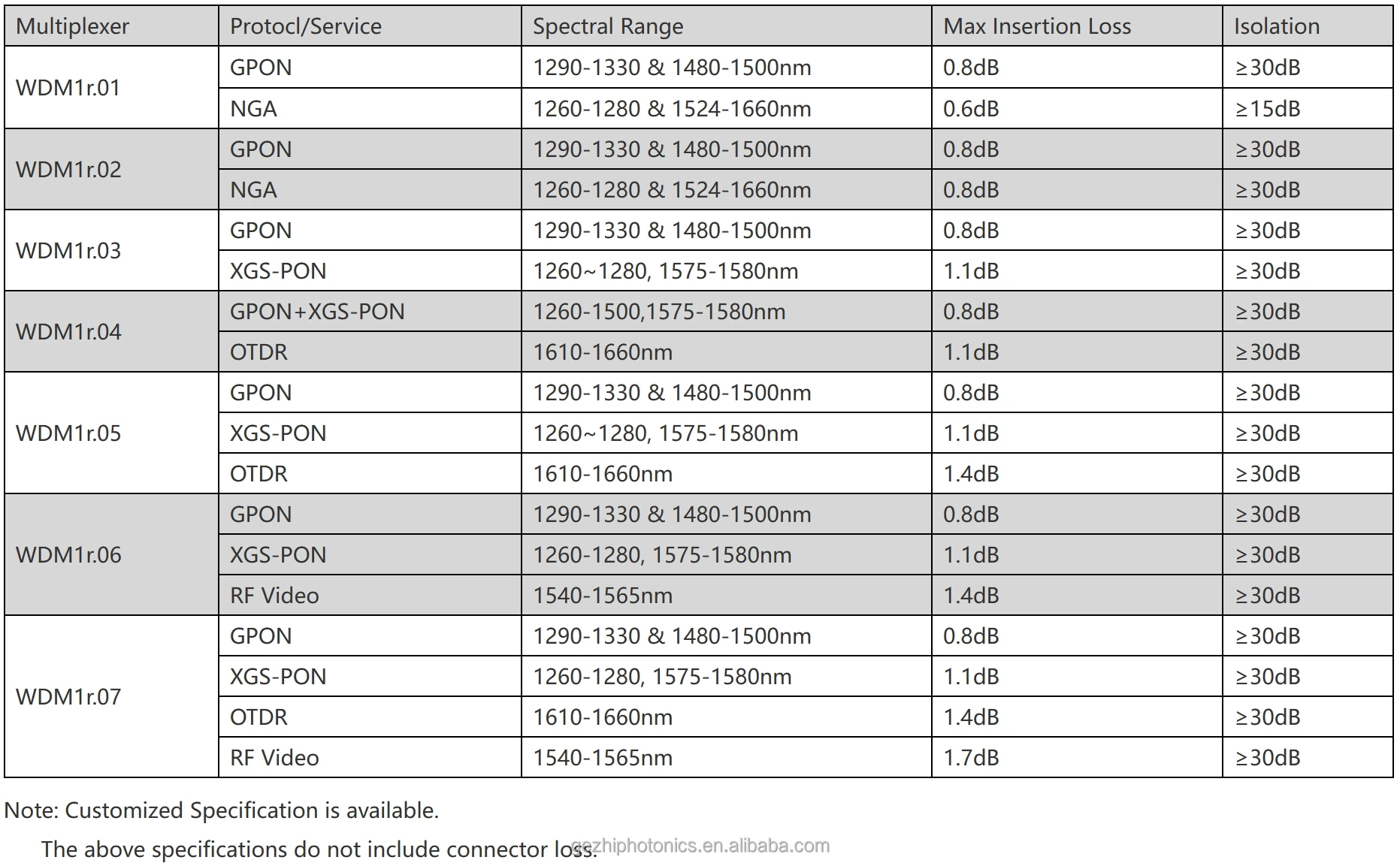

PRODUCT SPECIFICATIONS

Odering Information

Model	Configuration	Package type	Cable type	Fiber length	Connector
WDM1r.01 WDM1r.02 WDM1r.03 WDM1r.04 WDM1r.05 WDM1r.06 WDM1r.07 S=Specify	1=1unit combo 2=2unit combo 3=3unit combo 4=4unit combo S=Specify	A0=ABS box 80x60x12mm A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized	00=None 09=900um loose tube 20=2.0mm 30=3.0mm	00=None 05=0.5m 10=1.0m 15=1.5m S=Specify	00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 1 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

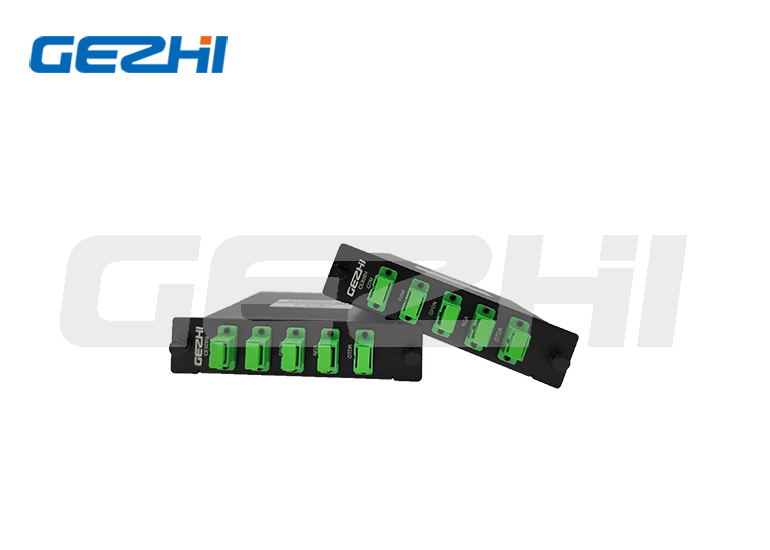

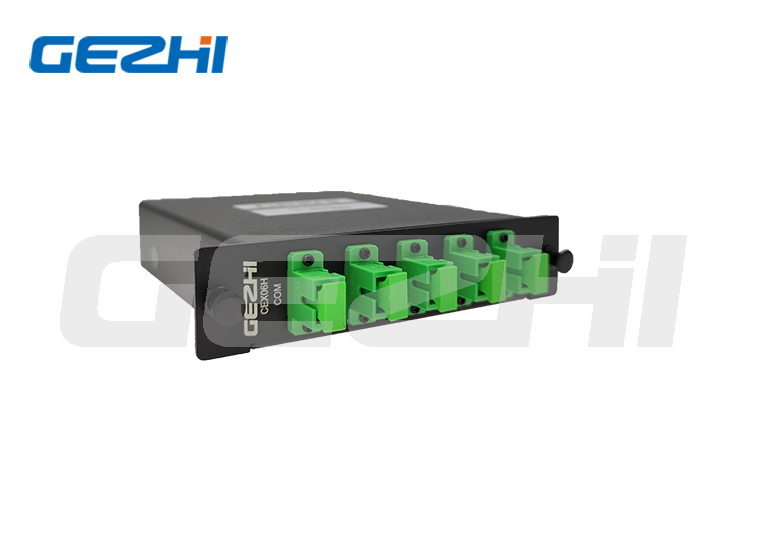

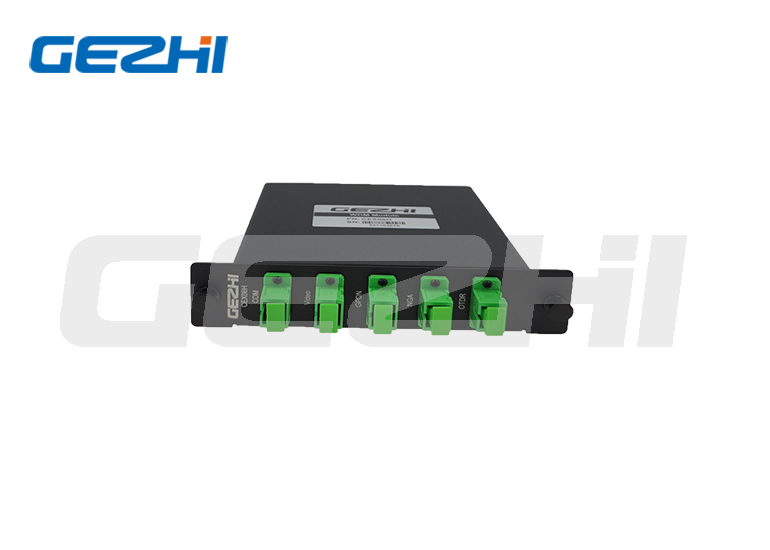

LGX GPON XGPON Video OTDR

SCAPC GPON XGPON Video OTDR
