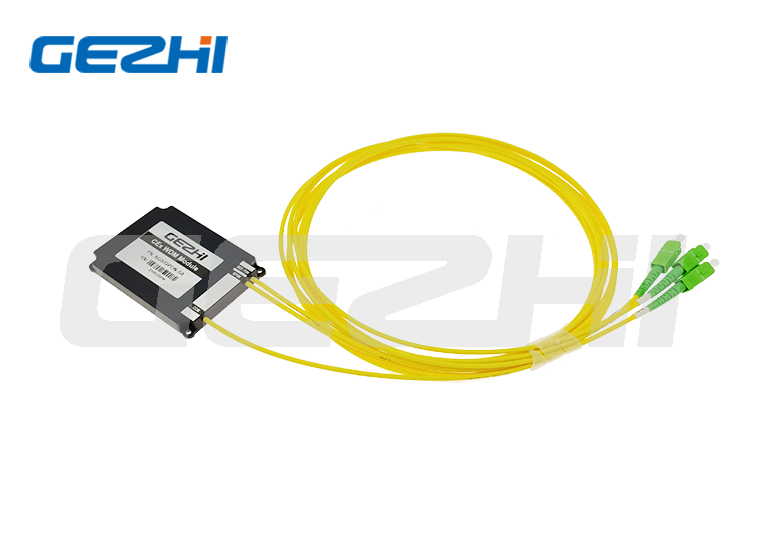

CEX WDM1R Multiplexer GPON XGS-PON FWDM Module Wdm Mux Demux

Name: CEX WDM1R Multiplexer GPON XGSPON FWDM Module Wdm Mux Demux
Brand: GEZHI or OEM
Price: 1 USD

CEX WDM1R Multiplexer GPON XGS-PON FWDM Module Wdm Mux Demux Manufactures

Brand Name : GEZHI or OEM

Model Number : CEX02A0AA

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $445

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : Data Center

Fiber Connector : LC/UPC, FC/APC, SC/APC etc.

Center Wavelength : 1270/1577; 1310/1490

Use : NGPON

Contact Now

Product description

CEX WDM1R multiplexer GPON XGS-PON FWDM module wdm mux demux

High quality components ensure very high operation stability of xWDM/xPON multiplexers in the whole spectral range and perfect thermal stability. GEZHI offers a flexible platform of Coexistence Element products to fit a specific PON deployment that is most cost-effective to your needs – Depending on your requirements each CEx can be fully complemented with all PON services or with only the services requested. Premium optical components and high-quality connectivity ensure superior performance, the lowest loss, and robust network reliability.

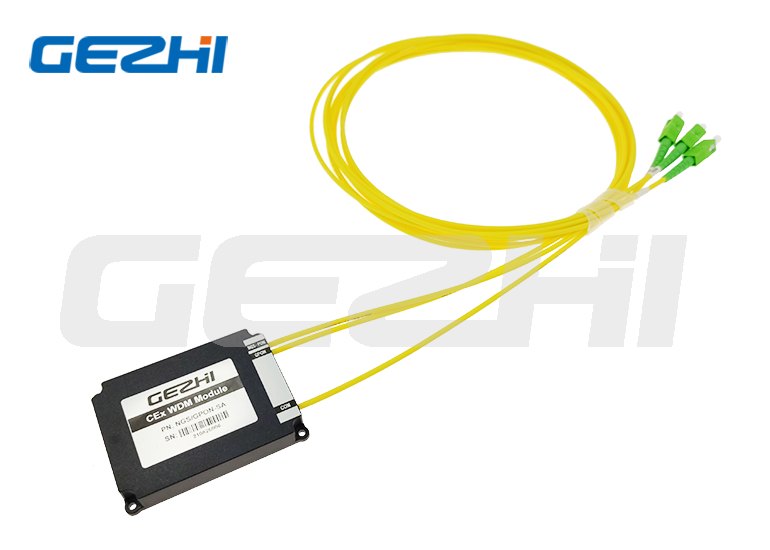

CEX WDM1R Multiplexer GPON XGS-PON FWDM Module Wdm Mux Demux

FEATURES

Low Insertion Loss

High channel isolation

RoHS Compliant

Available with customized functionalities

APPLICATIONS

WDM systems

PON SYSTEM

FTTH access networks

optical telecommunication networks

Wavelength of the Coexistence Elemet (CEx) Multiplexer

Protocl/Service	Wavelength
G-PON Band	1290~1330, 1480~1500nm
XGS-PON Band	1260~1280, 1575~1580nm
NG-PON2 Band	1524~1544, 1596~1625
RF Video Band	1540~1565nm
PtP WDM-PON Band	1610~1625nm
OTDR Monitor Band	1640 - 1660nm

Specification

CEx Multiplexer	Protocl/Service	Spectral Range	Max Insertion Loss	Isolation
CEx01	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx01	NGA	1260-1280 & 1572-1650nm	1.0dB	≥16dB
CEx02	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx02	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
CEx03	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥16dB
CEx04	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
CEx05	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.4dB	≥30dB
CEx06	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.7dB	≥30dB
	OTDR Monitor	1640-1660nm	1.4dB	≥30dB
CEx07	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	RF Video	1540-1565nm	2.0dB	≥30dB
	PtP WDM-PON	1610-1625nm	1.7dB	≥30dB
CEx08	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	OTDR Monitor	1640-1660nm	1.7dB	≥30dB
	PtP WDM-PON	1610-1625nm	2.0dB	≥30dB
	RF Video	1540-1565nm	2.3dB	≥30dB

Note: Customized Specification is available.

The above specifications do not include connector loss.

Other Specification

Parameter	Unit	Value
PDL	dB	≤0.2
Directivity	dB	≥50
Return Loss	dB	≥50
Operating Temperature	℃	-10~+70
Storage Temperature	℃	-40~+85
Optical Power	mW	300
Fiber Type	/	Corning Ultra Fiber (G657.A1)

Ordering Information

Model

Configuration

Package type

Cable type

Fiber length

Connector

CEx01

CEx02

CEx03

CEx04

CEx05

CEx06

CEx07

CEx08

S=Specify

1=1unit combo

2=2unit combo

3=3unit combo

4=4unit combo

S=Specify

A0=ABS box 80x60x12mm

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x15mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

X=Customized

00=None

09=900um loose tube
20=2.0mm
30=3.0mm

00=None

05=0.5m

10=1.0m
15=1.5m
S=Specify

00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specify

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 1 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Product Tags:

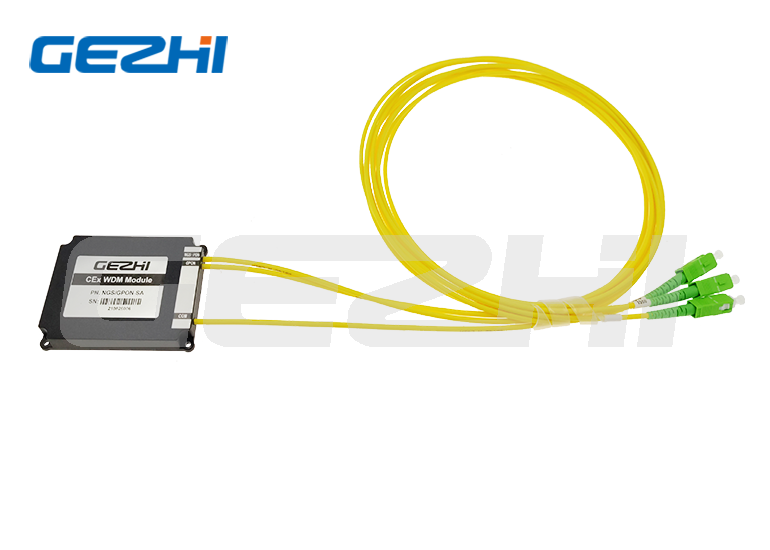

CEX WDM1R Multiplexer GPON XGS-PON FWDM Module Wdm Mux Demux Images
