8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm

Name: 8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm
Brand: Gezhi or OEM
Price: 1 USD

8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm Manufactures

Brand Name : Gezhi or OEM

Model Number : 8CH channel DWDM Moudule

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $280

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Application : Metro Networks

Fiber Connector : LC/UPC, FC/APC, SC/APC etc.

Center Wavelength : ITU Grid

Channel Spacing : 100GHz

Network : TCP, Ip, POE, GPRS, wifi

Warranty Time : 3 years

Use : CATV Fiber Optic Links

Contact Now

Product decription

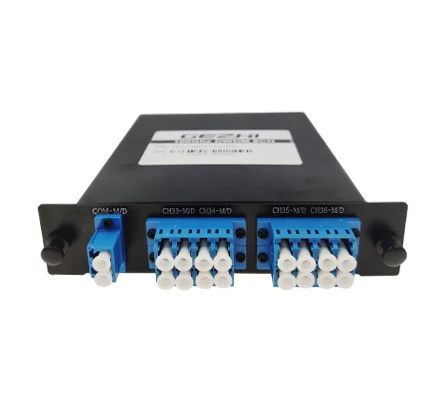

8CH DWDM module 2In1 Rack with Double Fiber DWDM mux Passive filters 8 channel demux cwdm

DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.

GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available

8CH DWDM Module 2In1 Rack With Double Fiber DWDM Mux Passive Filters 8 Channel Demux Cwdm

FEATURES AT A GLANCE

Low Insertion Loss

High Isolation

High Stability & Reliability

Industrial Operating Temperature

(-40~+80℃ available)

Customized Package type

Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

PRODUCT SPECIFICATIONS

Parameter	Unit	1x8 DWDM Mux Demux
Channel Number	--	1x8CH
Operation Wavelength	nm	C45~C52 +Upgrade Port
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	LC/UPC
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85

High Quality & Stability Material

Use Import Filter with High Reliable & Stable quality

Use Original EMI OPTOCAST 3410-VM Glue

Use High Quality G-Lens and Collimator

Product packaging

Finished Item

Inner Package

Inner Box

Carton

Test Enviroment

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
