Low PDL Wavelength Division Multiplexing 8CH CWDM Splitter Combine

Brand Name : GEZHI or OEM

Model Number : CWDM8CHMD47LPLGX

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : T/T, Paypal,Western Union

Supply Ability : 100000 Channel per month

Delivery Time : 5-8 work days

Packaging Details : paper box with foam

Product Name : 8CH CWDM Splitter

Channel : 1x8

Connector : LC/PC

Package : LGX Cassette

Wavelength : 1470~1610nm

Feature : High Isolation

Contact Now

Wavelength Division Multiplexing 8CH CWDM Splitter

GEZHI Wavelength Division Multiplexing 8CH CWDM Splitter combine or split up to 8 wavelengths into a dual fiber. CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 4 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The Wavelength Division Multiplexing 8CH CWDM Splitter features wide channel bandwidth (15nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.

Features

Applications
  • Low Insertion Loss High Isolation
  • Low PDL
  • Wide Operating Wavelength
  • Wide Operating Temperature
  • High Reliability and Stability
  • CWDM System
  • PON Networks
  • CATV Links
  • 5G Base station

Specifications

Parameters 1x2 1x4 1x8 1x16
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1460~1620 or 1260~1620
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) (P/A Grade) 0.7/1.0 1.4/1.7 2.0/2.5 3.5/4.0
Adjacent Channel 30
Non-Adjacent Channel 50
Ripple (dB) 0.3 0.4 0.5 0.5
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~75
Storage Temperature (℃) -40~85

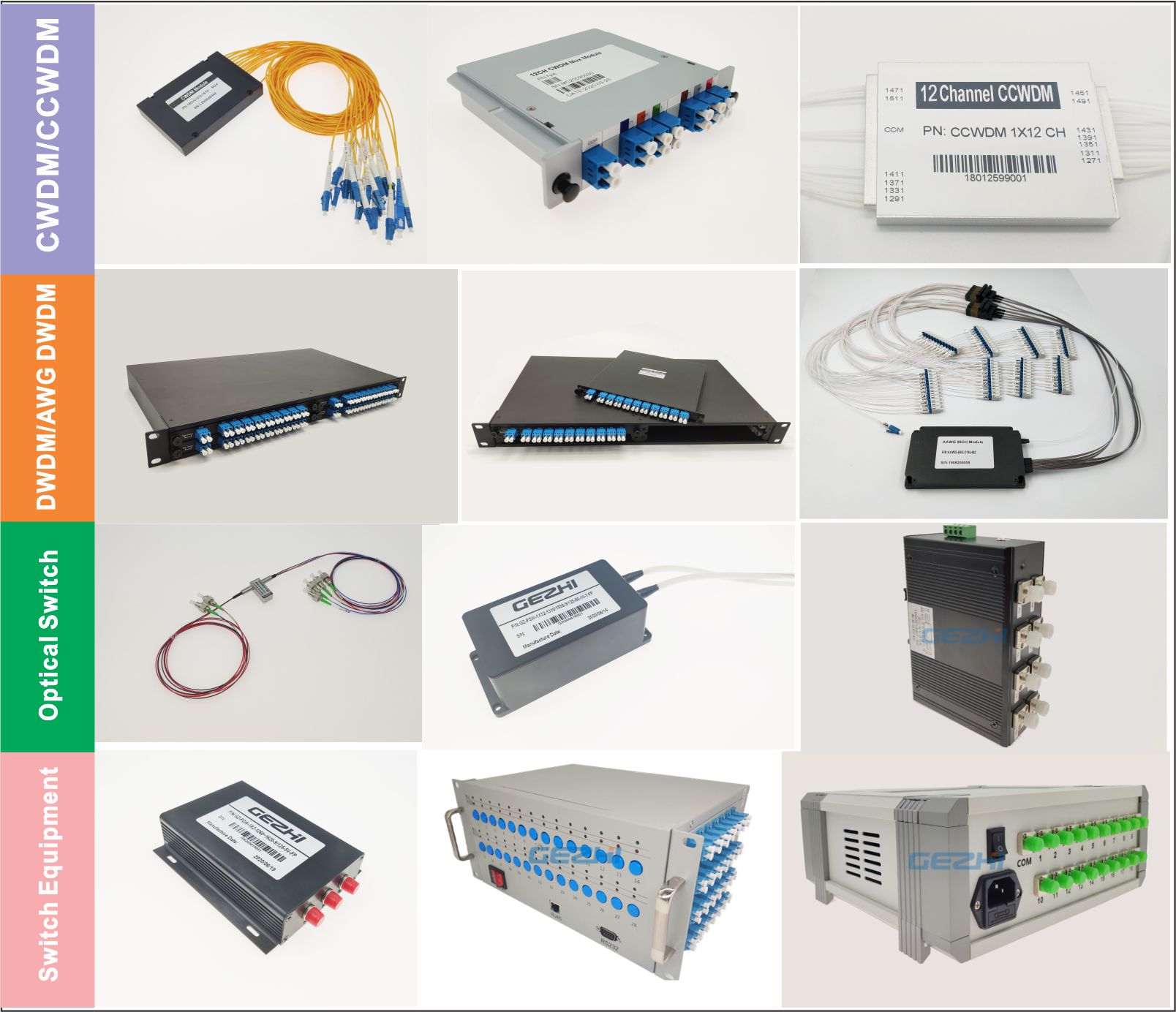

GEZHI MAIN PRODUCTS
