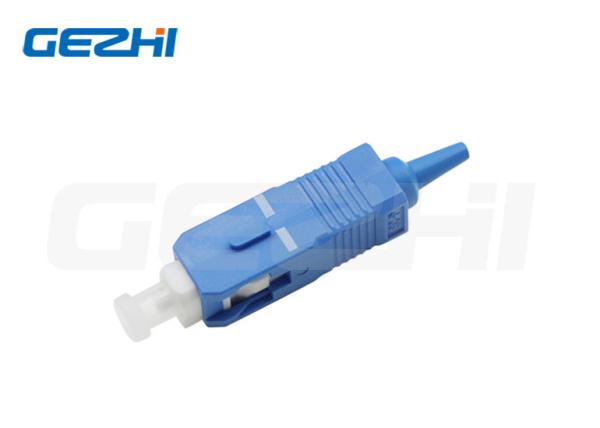

SC/UPC 0.9mm Fiber Connector for Test Equipment

  • 1
  • 2
  • 3

Brand Name : GEZHI or OEM

Model Number : GZ-SC-Connector

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Fiber Count : Simplex

Fiber Mode : Singlemode or Multimode

Polish Type : UPC

Cable Diameter : 0.9mm

Warranty : 3 Years

Application : CATV System

Contact Now

Product Overview of SC Fiber Connector

SC/UPC 0.9mm Fiber Connector for Test Equipment

Fiber Connector

GEZHI Photonics produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Applications of SC Fiber Connector

*Data Processing Networks
*Premise Installations
*Wide Area Networks (WANs)
*Test Equipment
*Telecommunication Networks
*Local Area Networks (LANs)
*CATV System

Specifications of SC Fiber Connector

Parameter
SC 0.9mm Connector
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.25dB
≤0.25dB
≤0.25dB
≤0.25dB
Return loss
≥50dB
≥55dB
≥60dB
/
Operating wavelength
1310nm, 1550nm
850nm, 1300nm
Ferrule Concentricity
≤1um
≤4um

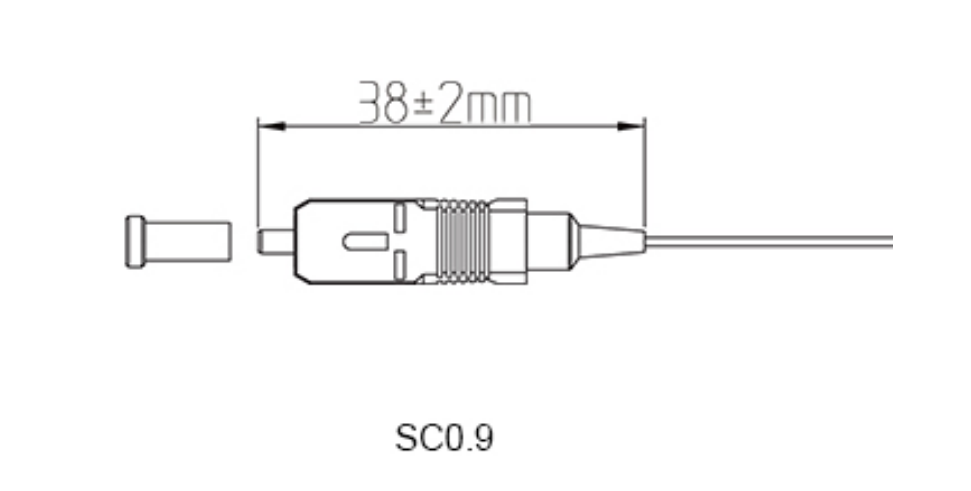

Dimension of SC Fiber Connector
SC/UPC 0.9mm Fiber Connector for Test Equipment

Test Environment

SC/UPC 0.9mm Fiber Connector for Test Equipment SC/UPC 0.9mm Fiber Connector for Test Equipment SC/UPC 0.9mm Fiber Connector for Test Equipment
SC/UPC 0.9mm Fiber Connector for Test Equipment

FAQ
Q1:Can I have a sample order? What is your MOQ of SC Fiber Connector?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of SC Fiber Connector?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of SC Fiber Connector?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
