One Way Bi Directional 100Ghz 2CH DWDM OADM Module

Brand Name : GEZHI or OEM

Model Number : 2CH-OADMDWDM

Certification : CE RoHS ,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 2CH Optical Add&Drop

Wavelength : C21 to C22

Channel Passband : 0.8nm (100Ghz)

Line Type : West and East one Fiber

Connector : Customzied

Application : Wavelength Routing

Contact Now

Bi-directional 2CH DWDM OADM Module One way

GEZHI’ Bi-directional 2CH DWDM OADM Module One way paked in a ABS box module which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C21, C22 wavelength. Its package one 2CH West and East DWDM OADM module in a ABS Box. This Bi-directional 2CH DWDM OADM Module One way are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's Bi-directional 2CH DWDM OADM Module One way are available in dual-sided (East and West) configurations supporting up to two wavelengths on one fiber.

Features

Low Insertion Loss

2 channel West & East

Single Fiber working

No electric power required

Flexible OADM networking

Applications

Long Haul Networks

Channel Add/Drop

Dense WDM Systems

CATV Fiber Optic Links

Metro Networks

Line Monitoring

Wavelength Routing

Cellular Application

Specification

Parameter

Unit

2CH DWDM OADM West and East
Add Drop
Channel Wavelength nm

C21, C22

Center wavelength

Accuracy

nm ITU-T Grid @DWDM

Channel Passband

nm 0.8 (100Ghz)
Insertion Loss dB <1.1 <1.1
Channel Ripple dB 0.5
Isolation Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

dB/℃ <0.005

Wavelength Temperature

Shifting

nm/

<0.002

Polarization Dependent

Loss

dB <0.15

Polarization Mode

Dispersion

dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature -20~+70
Storage Temperature -40~85
Package dimension mm ABS Box 100x80x10

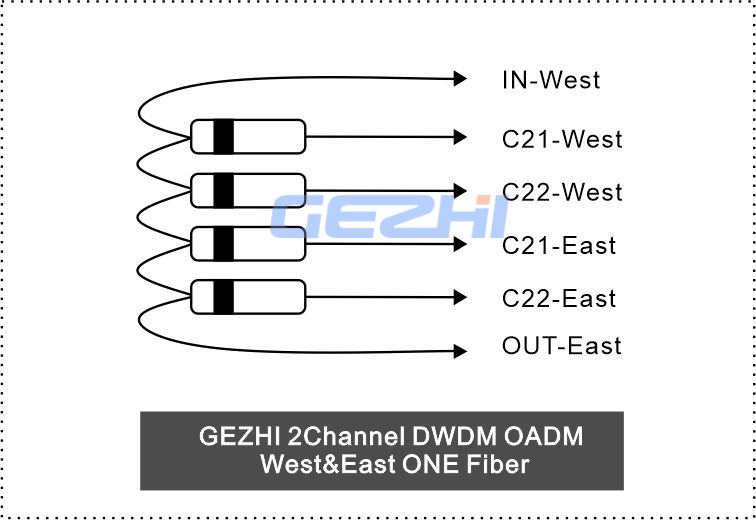

Bi-directional 2CH DWDM OADM Module One way​ filter cascading

One Way Bi Directional 100Ghz 2CH DWDM OADM Module

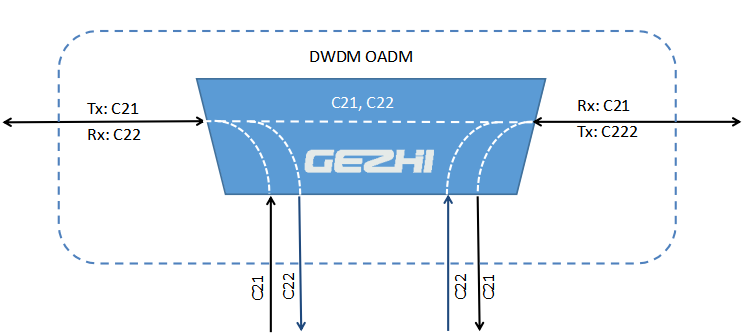

Bi-directional 2CH DWDM OADM Module One way​ on one Fiber​

One Fiber DWDM OADM Add and Drop Module

Two channel DWDM add & drop multiplexer for EAST&WEST for data transmission over one fibers.

One Way Bi Directional 100Ghz 2CH DWDM OADM Module
